Goods Hoists
We offer GEDA Hoists for Hire throughout the Southern U.K.
This includes a comprehensive service from initial consultation, site survey,
installation, maintenance and alteration.
Our Hire packages are tailor made to suit client requirements.
HIRE SALES
TRAINING |
Max Load capacity |
Average Lifting Speed |
Power Requirement |
Max Working Height |
Cage Dimensions |
Additional Information |

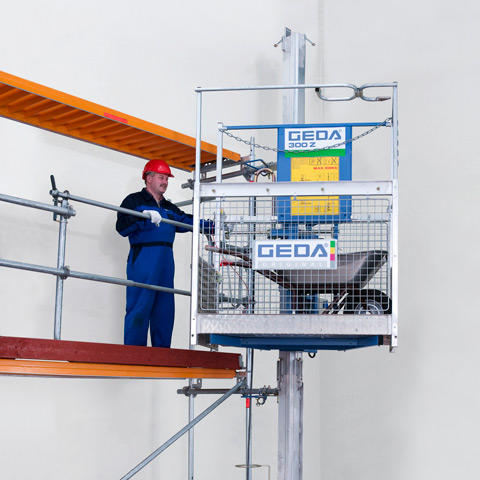

GEDA 300Z
Rack & Pinion Hoist
|
300kg |
20m/min |
240v single phase |
50m |
1.40m x 0.75m |
- uitable for use where 3 phase power is
unavailable.
- Ideal for restricted access areas as the cage is
removable allowing access through most doorways.
- Multiple landings access incorporating a half
height electrically interlocked gate system.
- Can be delivered on a purpose built trailer,
eliminating the need for craneage.
|
GEDA 500Z
Rack & Pinion Hoist
|
500kg |
30m/min |
415v three phase 16amp |
100m |
1.6m x 1.4m |
- A strong, robust 'builders hoist'
- The cage will transport 2 wheelbarrows.
- Can can be used with a suitable frame to lift sheets of plasterboard.
- Multiple landings access incorporating a robust electrically interlocked gate system.
|
GEDA 2000Z
Steel twin mast
Rack & Pinion Hoist
|
2000kg |
24m/min |
415v three phase 16amp |
100m |
See diagram below |
- A large platform suitable for transporting materials including full packs of plasterboard.
- Multiple landings access incorporating a robust electrically interlocked gate system
|

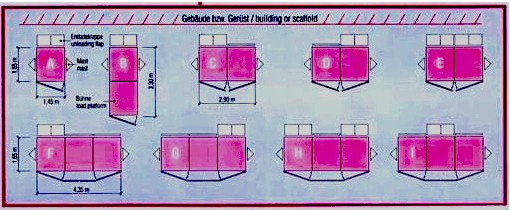

Load platform variants for 2000Z
