Access Platforms

The Aerial Power of East Anglia

We offer a range of self drive Powered Access Platforms between 7.60m and 20.30m working height.

For our full range telephone or e-mail us today.

To enlarge click on the required photograph below

HIRE SALES TRAINING

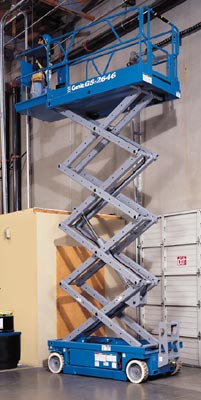

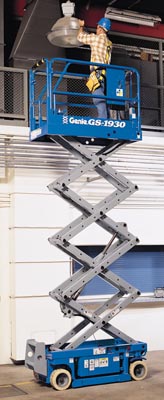

	GENIE GS 19/30 Electric Scissor Lift Narrow Internal Use Non-Marking Tyres	GENIE GS 26/32 Electric Scissor Lift Narrow Internal Use Non-Marking Tyres	GENIE GS 26/46 Electric Scissor Lift Internal Use Non-Marking Tyres	GENIE GS 32/46 Electric Scissor Lift Internal Use Non-Marking Tyres
Max Working Height (m)	7.60	9.75	9.75	11.58
Max cage floor height (m)	5.80	7.92	7.92	9.75
Cage Dimensions (m)	2.63x0.71	2.26x0.8	3.25x1.16	3.25x1.16
Closed Height (m)	1.99 ( 1.0 H/R down)	2.29 (1.73 H/R down)	2.13 (1.17 H/R down)	2.30 (1.3 H/R down)
Closed Length (m)	1.83	2.44	2.44	2.44
Closed Width (m)	0.76	0.81	1.17	1.17
Safe Working Load (kg)	227	227	454	318
Weight (kg)	1270	2336	2055	2309

HIRE SALES TRAINING

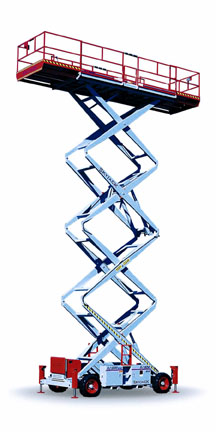

	SKYJACK 6826RT 4WD Scissor Lift with Jacks Diesel Powered	SKYJACK 6832RT 4WD Scissor Lift with Jacks Diesel Powered	SKYJACK 8841 2WD Scissor Lift Diesel Powered Large Platform Area	SKYJACK 9250 4WD Scissor Lift with Jacks Diesel Powered
Max Working Height (m)	9.75	11.50	14.40	17.20
Max cage floor height (m)	8.00	9.75	12.40	15.20
Cage Dimensions (m)	3.94x1.43	3.94x1.43	5.72x1.78	7.20x1.90
Closed Height (m)	2.37	2.50	2.75	3.20
Closed Length (m)	2.70	2.70	3.48	4.50
Closed Width (m)	1.93	1.93	2.07	2.30
Safe Working Load (kg)	567	454	680	681
Weight (kg)	2900	3475	5581	7407

HIRE

SALES

TRAINING

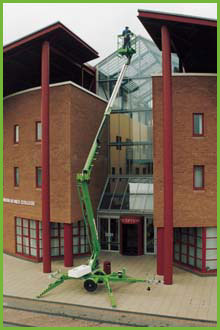

NIFTYLIFT 170

Trailer Mount Boom
Bi-Energy

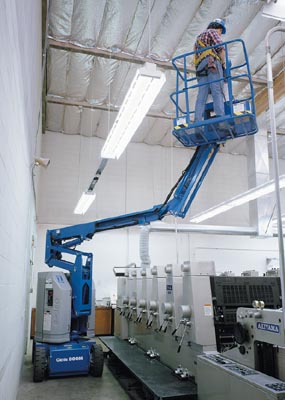

GENIE 30/20N

Electric Narrow
Self Propelled Boom

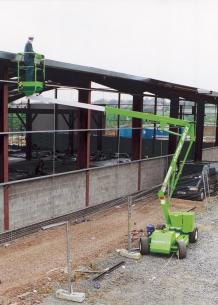

HEIGHTRIDER 12N
Bi-Energy Narrow
Self Propelled Boom

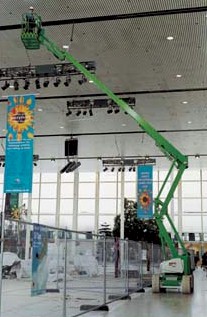

HEIGHTRIDER 15N
Bi-Energy Narrow
Self Propelled Boom

Max Working Height (m) 17.10 10.80 12.20 15.60

Max cage floor height (m) 15.10 8.80 10.20 13.60

Cage Dimensions (m) 1.10x0.65 1.17x0.76 1.10x0.65 1.50x0.70

Closed Height (m) 1.90 2.24 1.90 1.95

Closed Length (m)
6.20 3.76 4.10 5.94

Closed Width (m) 1.60 1.17 1.50 1.50

Safe Working Load (kg) 200 227 200 225

Weight (kg) 2000 6622 2950 6400

Max. Working Outreach (m) 8.700 6.30 6.10 9.60

Width with Stabilisers Extended (m) 4.37 n/a n/a n/a

HIRE

SALES

TRAINING

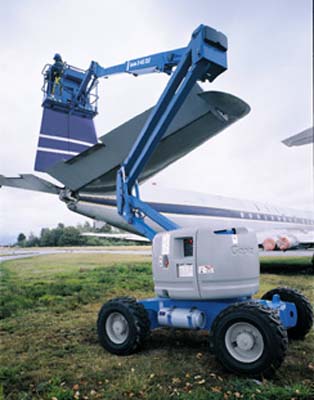

GENIE BOOM Z45/25

Self Propelled Boom
Diesel or Bi-Energy

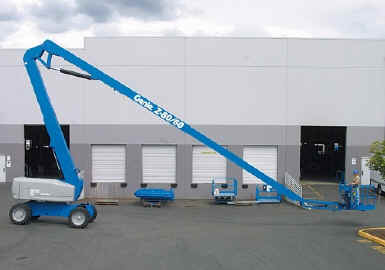

GENIE BOOM Z60/34

Self propelled boom
Diesel Powered

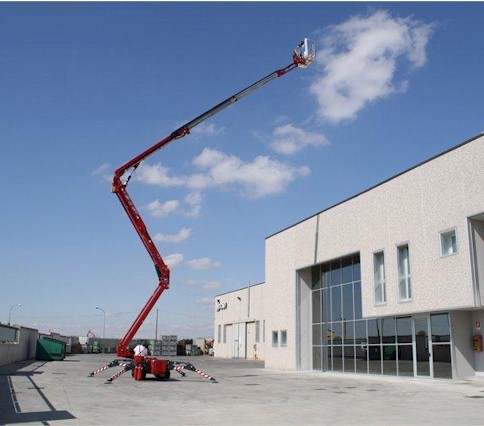

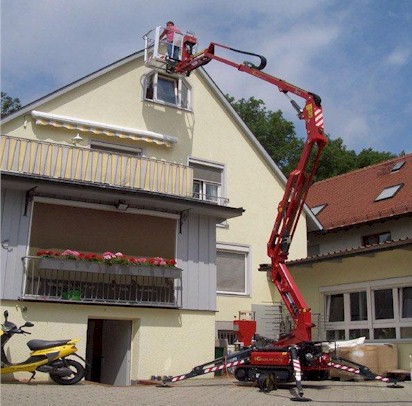

HINOWA GOLD LIFT 14.7

Narrow tracked boom
Bi-Energy

Max Working Height (m) 15.80 20.30 14.00

Max cage floor height (m) 13.80 18.30 11.94

Cage Dimensions (m) 1.80x0.76 2.44x0.91 1.45x0.70

Closed Height (m) 2.01 2.64 1.98

Closed Length (m)
5.40 7.90 3.97

Closed Width (m)
1.83 or Diesel 2.24
2.41 0.78

Safe Working Load (kg) 227 227 200

Weight (kg) 6536 10004 1700

Max. Working Outreach (m) 6.70 10.40 6.50

Width with Stabilisers Extended (m) n/a n/a 3.00
